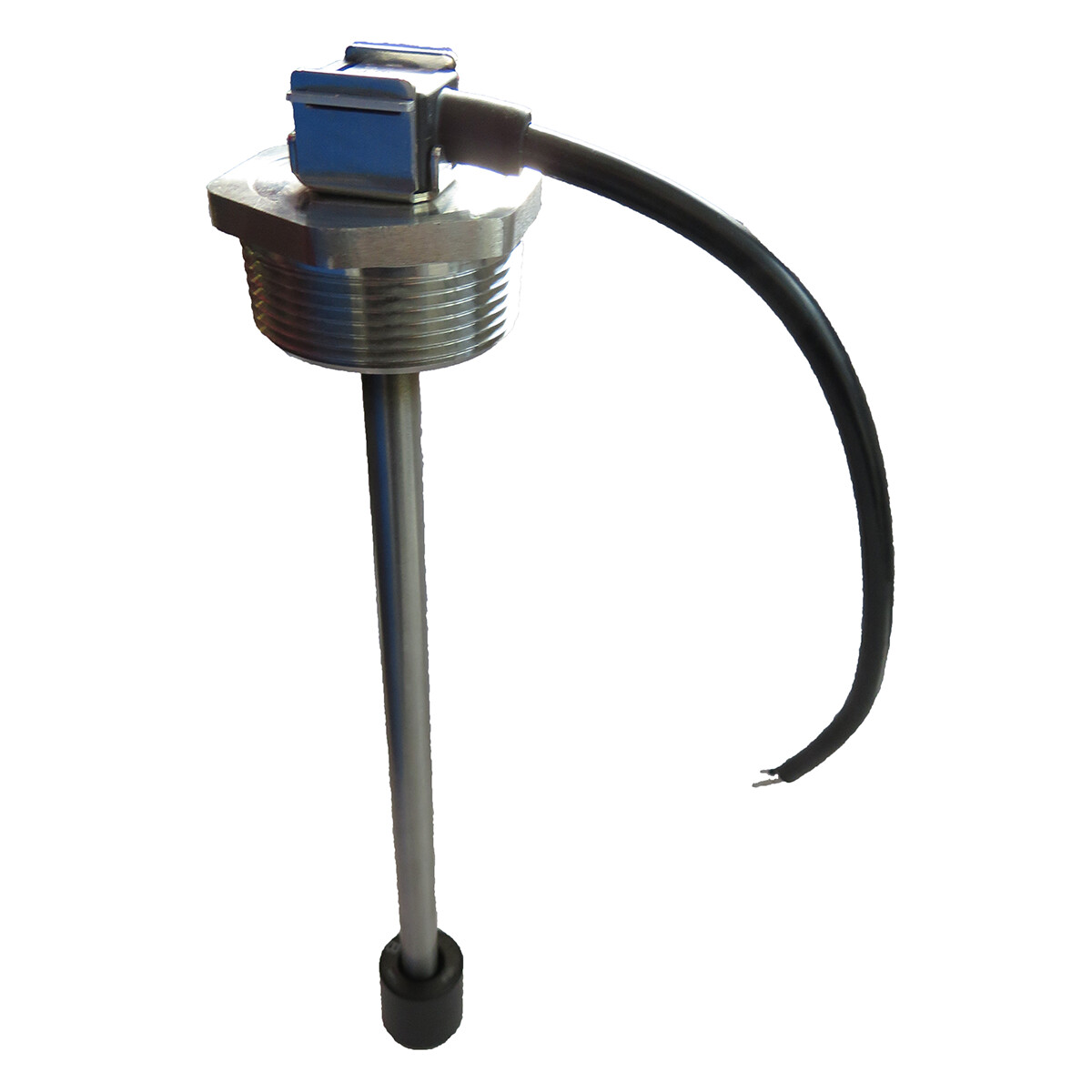

This unit suitable for tanks with a 18” internal
depth.
Application The Reed Switch line of fuel senders fit tanks 4” [101.6 mm] to 24” [1067 mm]. They are designed for top mounting in aluminum, plastic, steel or stainless steel fuel tanks in all types of industrial equipment. These senders are recommended for both on-road and off-road applications. They include special features and protection from corrosion (internal and external to the fuel tank) which makes them the quality standard for all industries.
General Information & Features Standard mounting configuration, 1 ½” NPTF. The head and support are made of stainless steel and is suitable for harsh offroad conditions. The sender is suitable for gasoline, ethanol, diesel, bio-diesel, urea, water, etc. Industry standard output: 240-30 ohms. The close tolerances held on this series of Reed Switch fuel level sender will provide the proper signal for any of the popular 2” [50.8 mm] panel mounted receivers or ECM’s.
